DX Engineering Receive Antenna at K3LR

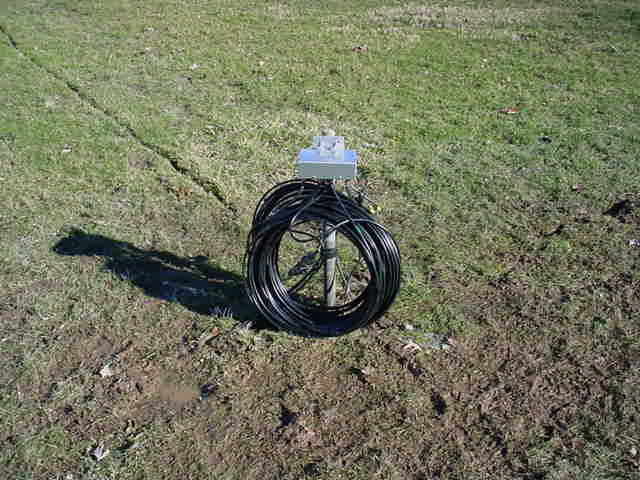

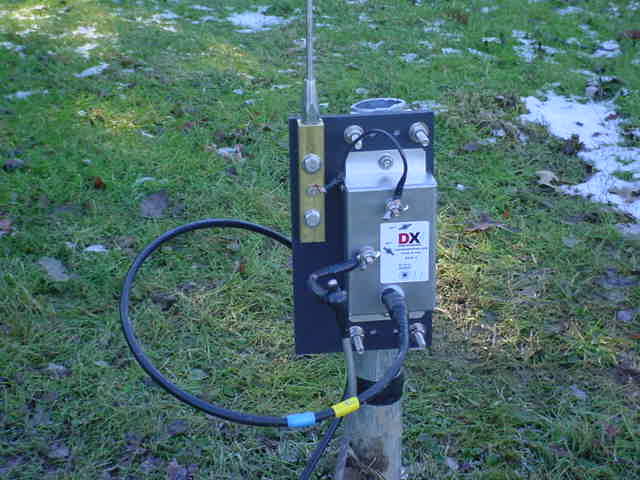

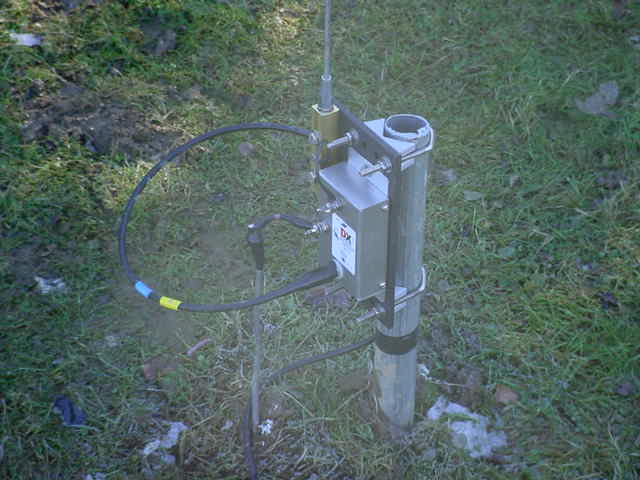

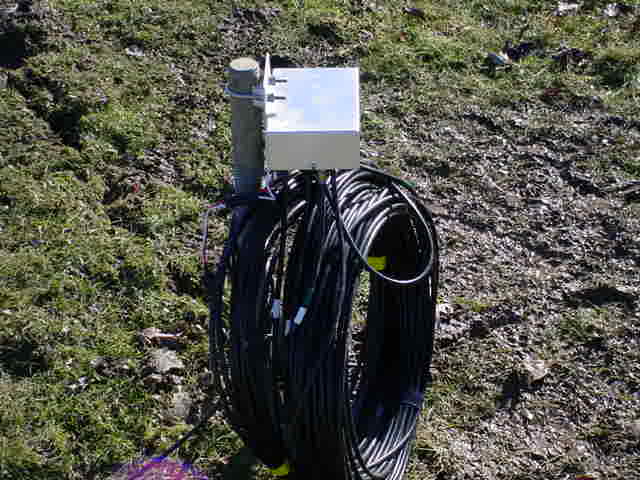

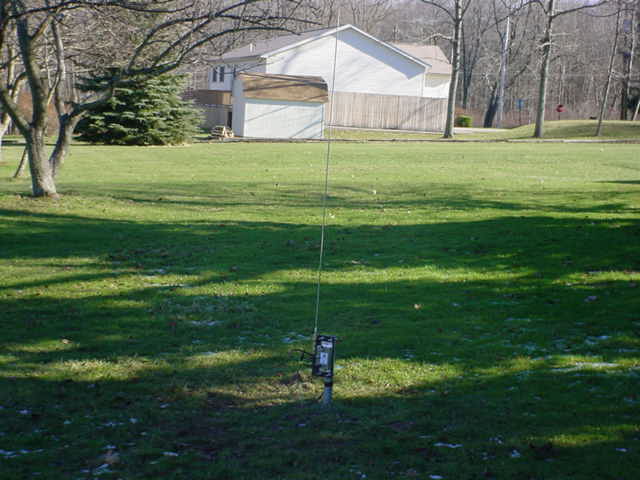

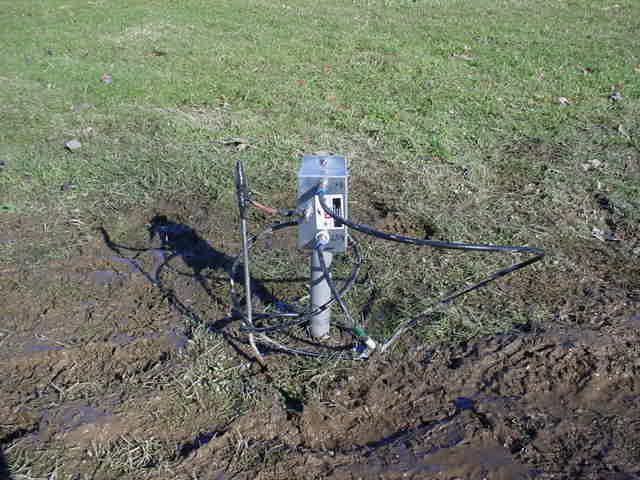

The DXE central hub is shown, the DXE feedline choke and the DXE active

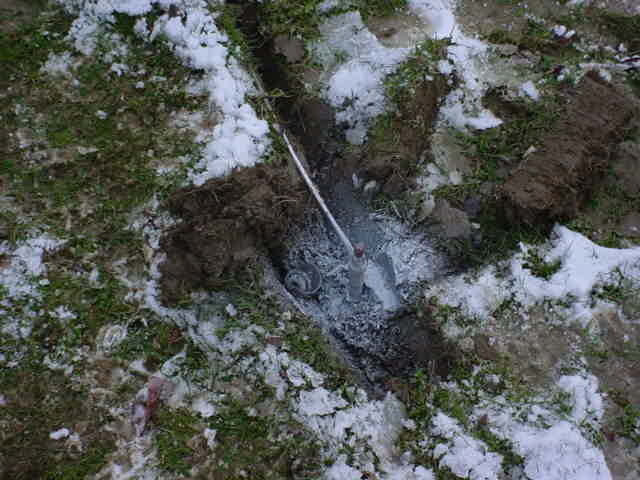

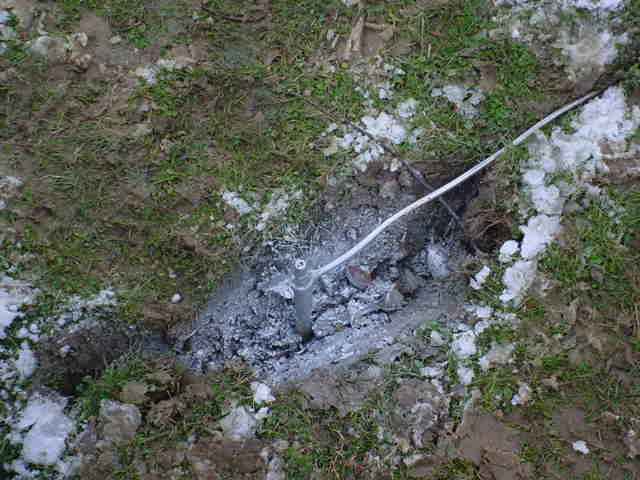

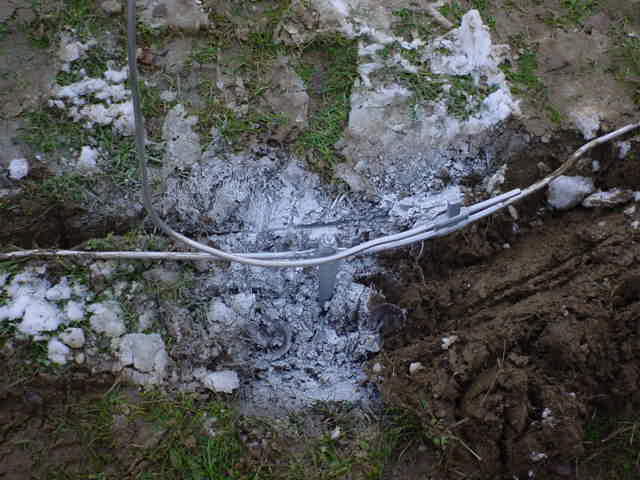

antennas. Also shown is the ground system (3 solid rods, spaced 4 feet, all Cad
Welded) at each one of the 6 locations (4 active antennas, choke and control).
It works VERY well! F/B is 25 to 30 dB
