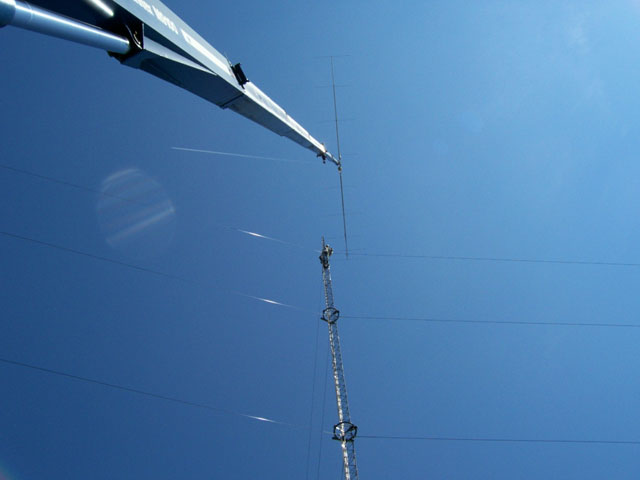

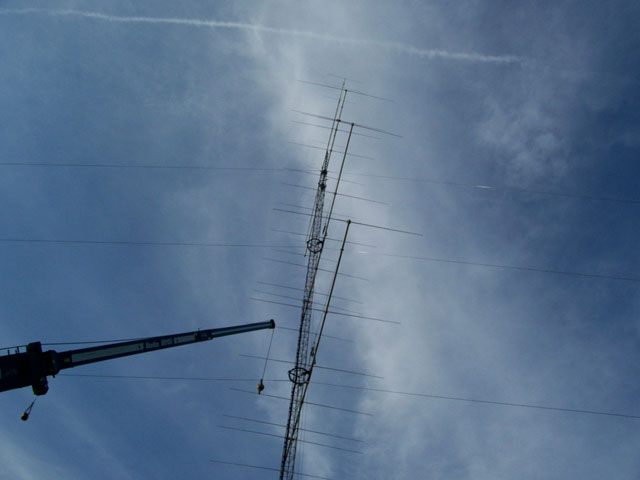

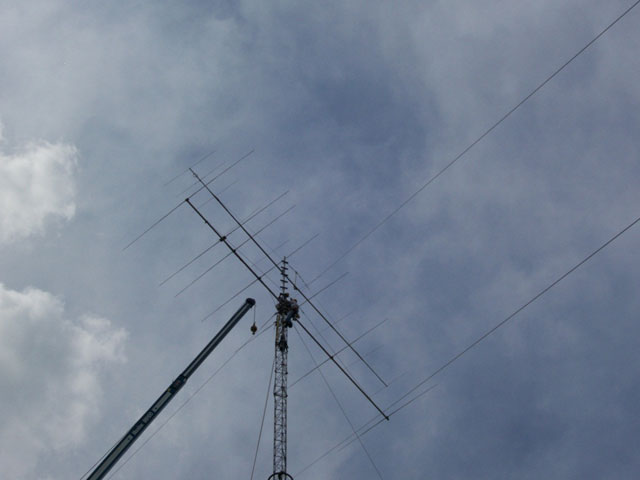

New 4 high 15 meter array at K3LR.

At 170 ft is a 9 element M2 6 meter beam on a 50 ft boom.

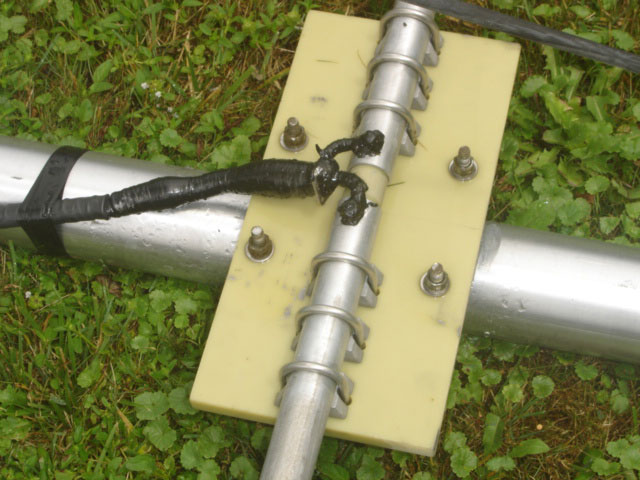

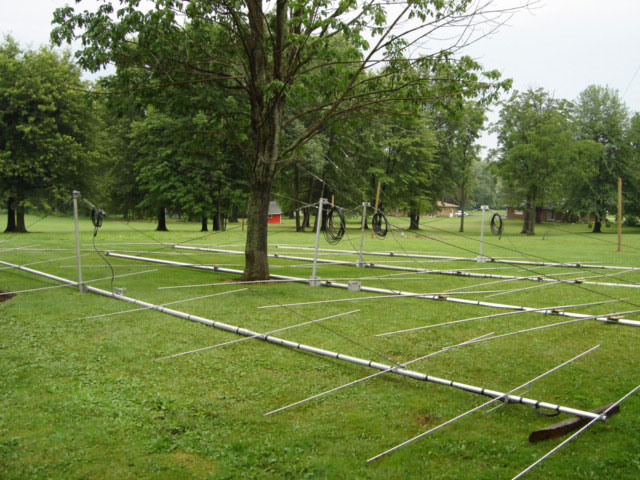

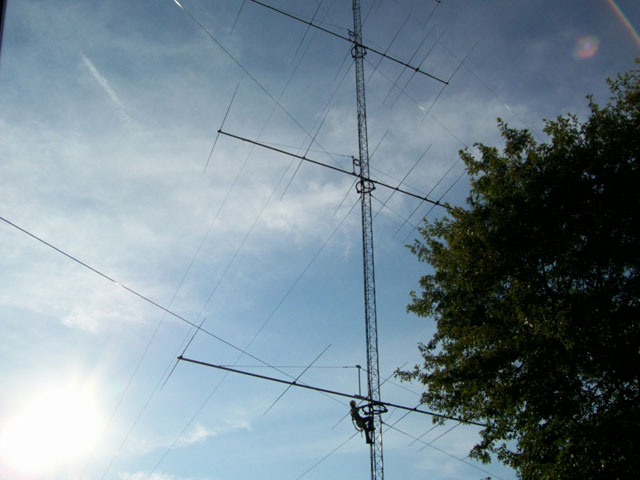

There are four 7 element, 50 ft boom, OWA 15 meter beams at 160'/120'/80'/40'.

The top rotor is a prop pitch, the lower three 15 meter beams are on TIC rings.

1 - 5/8" coax feeds the master switch box at 100 ft.
Switching allows 10 instant combinations. Any one, all four, top 3, bottom 3, top 2, middle 2, bottom 2.

The old system of three 6 ele beams were at 120'/80'/40', so the old performance is preserved with the added special antenna at 160 feet.
