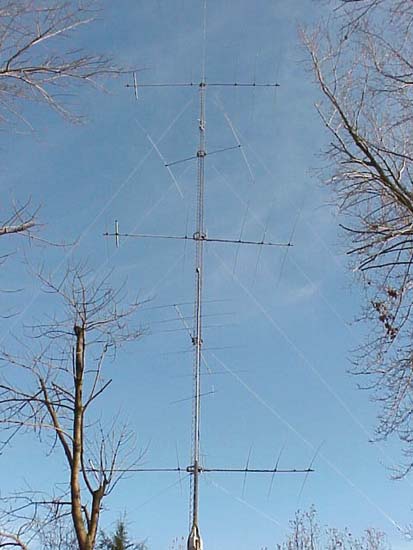

20 meter tower. 170 ft of Rohn 45
5/5/5 on 20 at 170/110/50 feet. 50 ft booms. K3LR design. 7/8" Heliax feedline
Top antenna has Prop Pitch rotor, W0MLY design
110 and 50 ft are on TIC 1032 rings
7 combinations of the array switchable at the station.
2 element 40 at 140 ft on TIC 1022 ring for 2nd 40 meter station
5 element 15 at 80 ft on a TOC 1022 ring for 2nd 15 meter station
