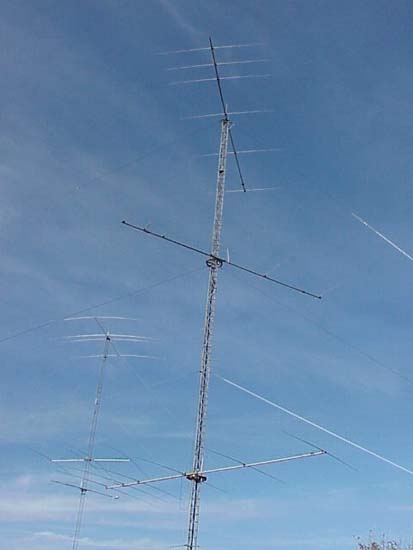

15 Meters at K3LR 6/6/6 18 elements. 6 ele at 120ft 6 ele at 80 ft 6 ele at 40 ft.
Top on a Create RC5B3 rotor. 80 and 40 on a TIC 1032 Ring Rotor.
Indoor switching to select 7 combinations of the 3 antennas.
Back tower is the 190 ft 40 meter tower with 8 elements on 40.
10 and 15 meter towers are AB-105 style Trylon 18 inch face.
15 meter booms are 50 ft long. K3LR design
7/8" Heliax feedline for 15 meters
